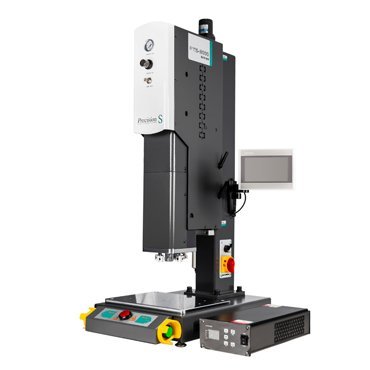

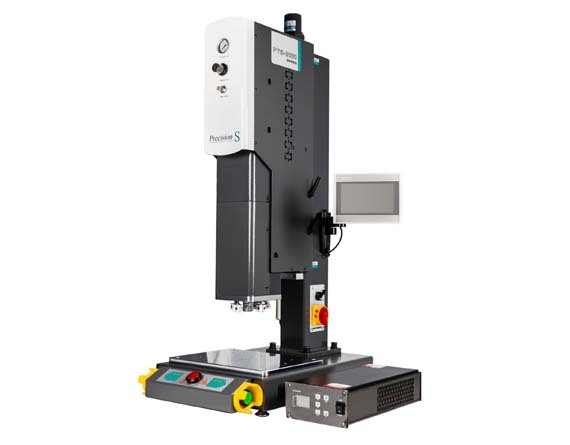

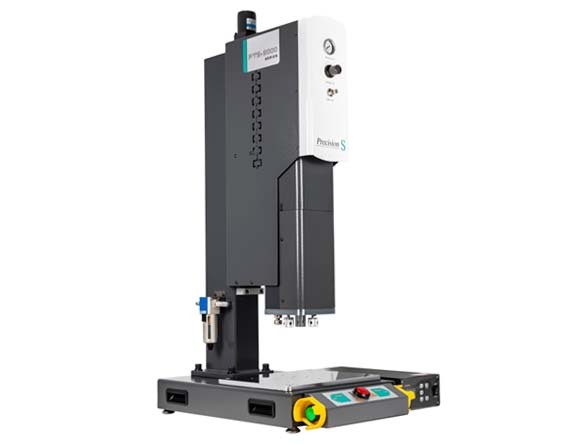

Ultrasonic Plastic Welder MCS2000

Product Overview

The MCS2000 is an Advanced Series bench-top ultrasonic plastic welder that joins thermoplastic parts with pneumatic pressure and a fully digital generator. The horn presses onto the part, ultrasound melts the joint interface, and the weld sets while pressure is still applied — no adhesive, no fasteners, no open flame. It suits production benches that weld the same part hundreds of times a day and need each cycle to match the last: automotive components, consumer electronics, home appliances, medical devices and packaging. It runs as a stand-alone bench unit in a manual cell, and because the pressure comes from the pneumatic head rather than the operator's hand, the cycle holds from the first part of a shift to the last. This is the model we build in the largest numbers.

Specifications

Welding Modes & Amplitude Management

• Time mode — the simplest ultrasonic plastic welding cycle: the horn holds for a preset weld time. Fast to set up and easy to repeat when part fit and material are consistent.
• Energy mode — the cycle ends once a preset amount of energy has been delivered into the joint, so small differences in moulding tolerance or fit do not swing the result.
• Time + energy mode — both limits run together. We suggest it for demanding joints where too much energy and too little are both a problem.
• Fixed amplitude — amplitude stays constant through the cycle: predictable and straightforward for uniform parts.
• Time-staged amplitude — amplitude steps change at set points in the cycle, which softens the start and holds back flash on thicker sections.
• Energy-staged amplitude — amplitude follows the energy delivered, useful when the joint collapses early and the remaining energy would otherwise over-weld the part.

Weld Pressure & Control Systems

Consistency comes down to how the head touches the part. A mechanical pressure sensor reads the force applied during the cycle, while the balance and lifting systems keep the horn square to the joint, so every weld starts from the same position and runs under the same pressure. Head alignment and travel are handled by the same control set, which is what lets your plastic welding machine hold its tolerance across a long shift instead of drifting as the operator speeds up. Weld quality, production data and safety functions are managed together in one system, and the spare ports let you add optional equipment — X/Y shifters, acoustic enclosures, film winders or safety light curtains — as the cell around the machine grows.

Frequency & Power Selection

1. Start with the part — the resin, wall thickness and joint design decide how much energy the weld needs and how long the horn must stay in contact.
2. Pick the frequency band — lower frequencies push more amplitude into larger, deeper joints and thicker sections, while higher frequencies concentrate energy into small, fine parts.
3. Size the power to the duty cycle — light, intermittent assembly sits at the lower end of the range, while continuous welding on bigger parts needs the top end.
4. Set the cycle around your own parts — trigger, weld time and amplitude profile are adjusted on samples rather than guessed from a datasheet.
5. Confirm the configuration — because settings and tooling follow the part, each unit is built as a custom ultrasonic plastic welding machine for the job it will do.

Applications

• Automotive components — trim, housings and small assemblies welded at a bench cell, where a repeatable cycle matters more than raw speed.
• Consumer electronics — enclosures, holders and internal plastic parts that have to close cleanly, with no marks on the visible face.
• Home appliances — panels, covers and internal parts joined without adhesive, screws or clips.
• Medical devices — housings and disposables where the ultrasonic welding process has to repeat identically over long runs; tell us about any validation or documentation you need.
• Packaging — trays, containers and closures where a sealed, consistent joint is the whole point of the weld.
• Unusual parts — when a joint falls outside the usual shapes, we build a custom ultrasonic plastic welding solution around your drawing instead of forcing the part into a standard setup.

Technical Support & Model Matching

Unsure which ultrasonic system fits your workpiece or production line? MCSONIC's engineering team helps you select the right machine, horn or blade configuration before you order, backed by over 15 years specializing in ultrasonic cutting and systems widely used in factories worldwide. We support customization of key parameters, integration into existing automation lines, and clear guidance on installation, commissioning and daily operation. Our after-sales engineers help troubleshoot issues remotely or on site, and selected systems support remote diagnostics. Send us your drawings, samples or cycle targets and we will recommend a practical configuration.
