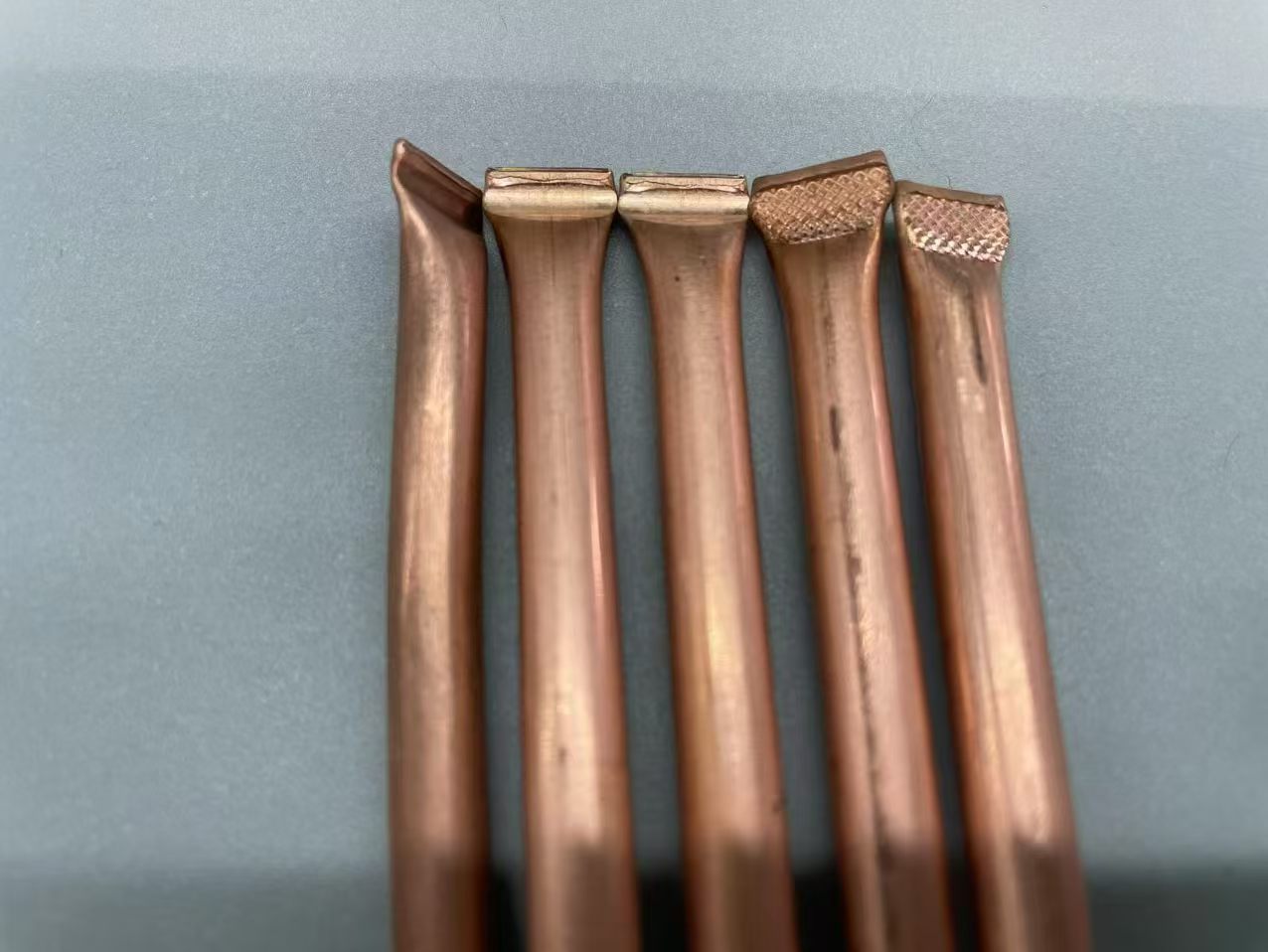

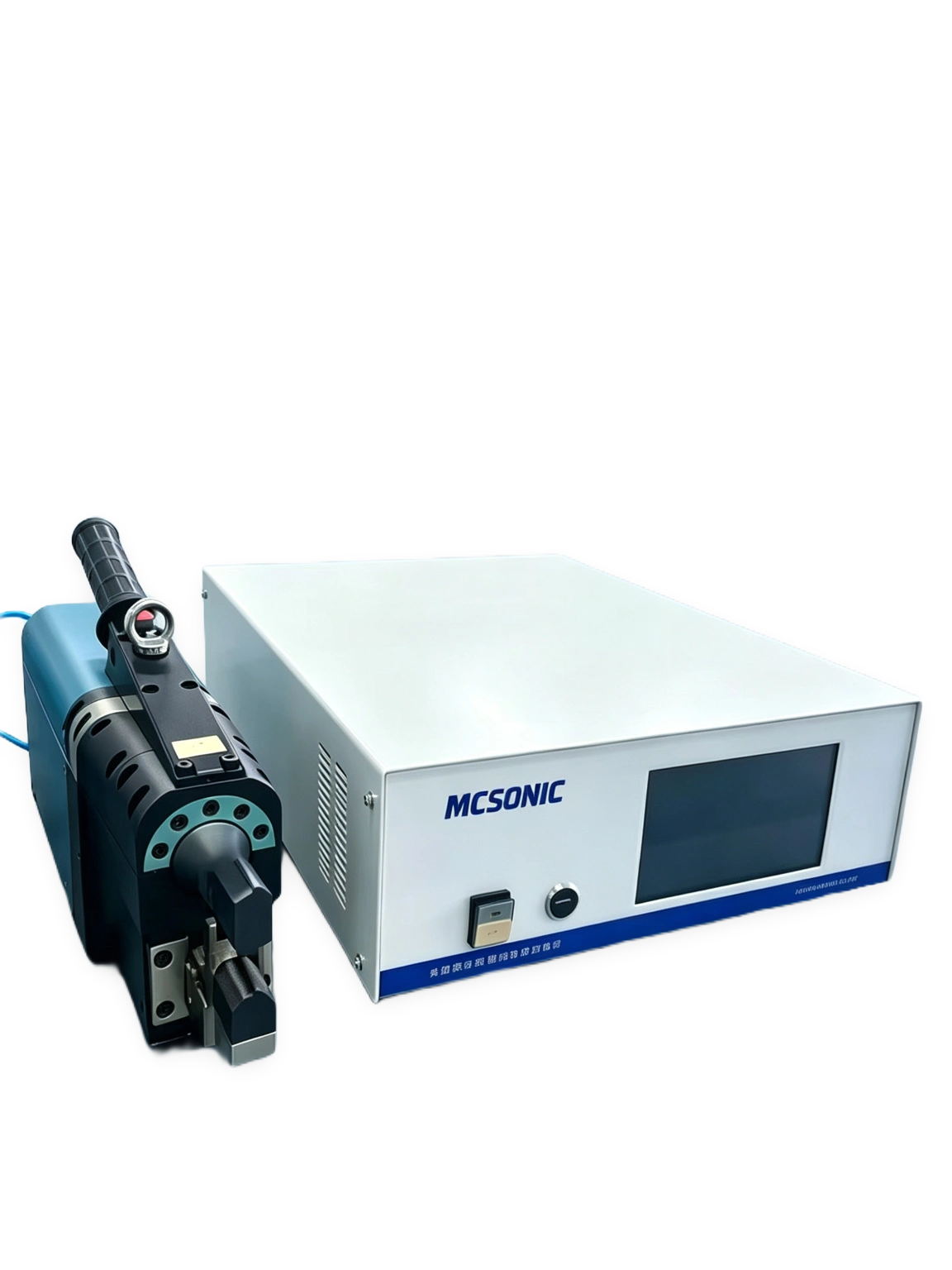

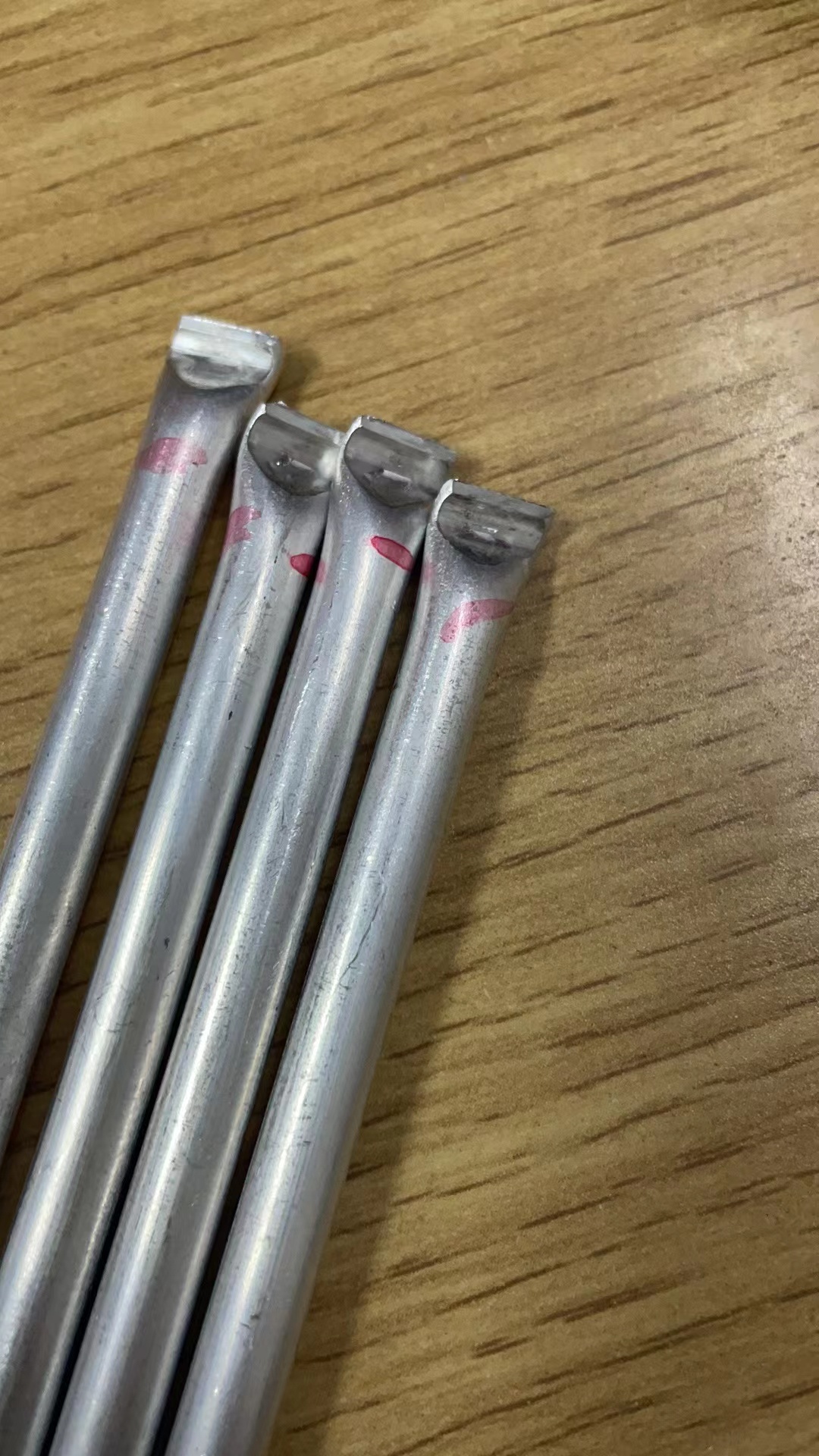

The MC-F30Z is a 3000W handheld/portable ultrasonic tube sealing machine designed for one-step sealing and cutting of copper and aluminum refrigerant tubes in refrigerator, air conditioner and heat pump production. It replaces flame brazing with a cold, gas-free, environmentally friendly process that delivers a hermetic, leak-proof seal with consistent cut length.

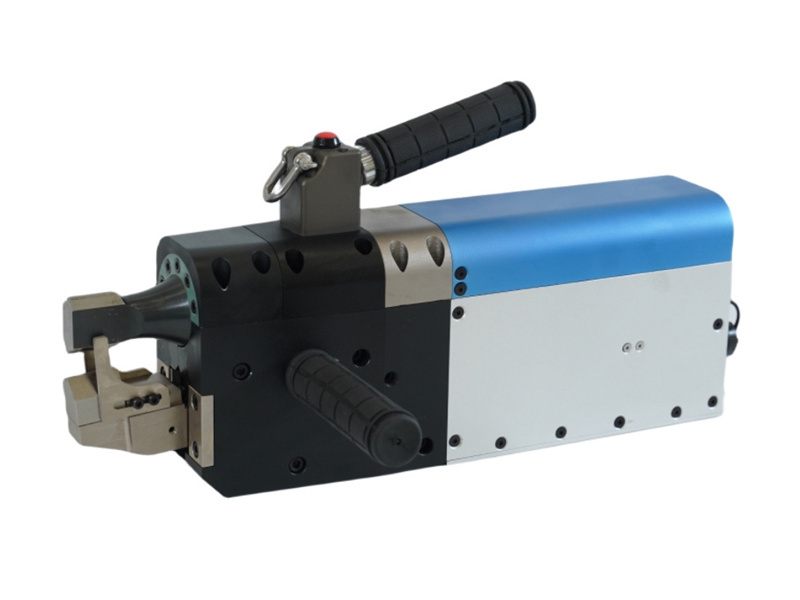

The generator converts mains power into a 20 kHz high-frequency electrical signal, which the transducer turns into mechanical vibration. The handheld sonotrode applies this vibration to the charged copper or aluminum tube under regulated air pressure, causing the metal molecules to interdiffuse and form a solid-state, hermetic crimp in a fraction of a second. The lower fixture simultaneously seals and cuts the tube to a uniform length.
| Model | MC-F30Z (Portable / Handheld) |
| Rated Power | 3000 W |
| Working Frequency | 20 kHz |
| Sealable Tube Diameter | 2 - 10 mm (copper / aluminum) |
| Working Voltage | 220 V |
| Working Air Pressure | 0.1 - 0.6 MPa (auto-adjust) |
| Head Weight | 12.0 kg |
| Height Detection | Yes |
| Auto Air-Pressure Adjustment | Yes |
| Head Dimensions | 450 x 230 x 100 mm |
| Generator Box Dimensions | 500 x 380 x 100 mm |
| Flame Brazing | MC-F30Z Ultrasonic |
|---|---|
| Open flame — fire risk | Cold process — no gas, no flame |
| Braze then cut; slow | One step: seal and cut in seconds |
| Heat-affected zone, flux residue | Cold weld, no HAZ, no flux |
| Quality depends on operator | Digitally controlled, identical results |

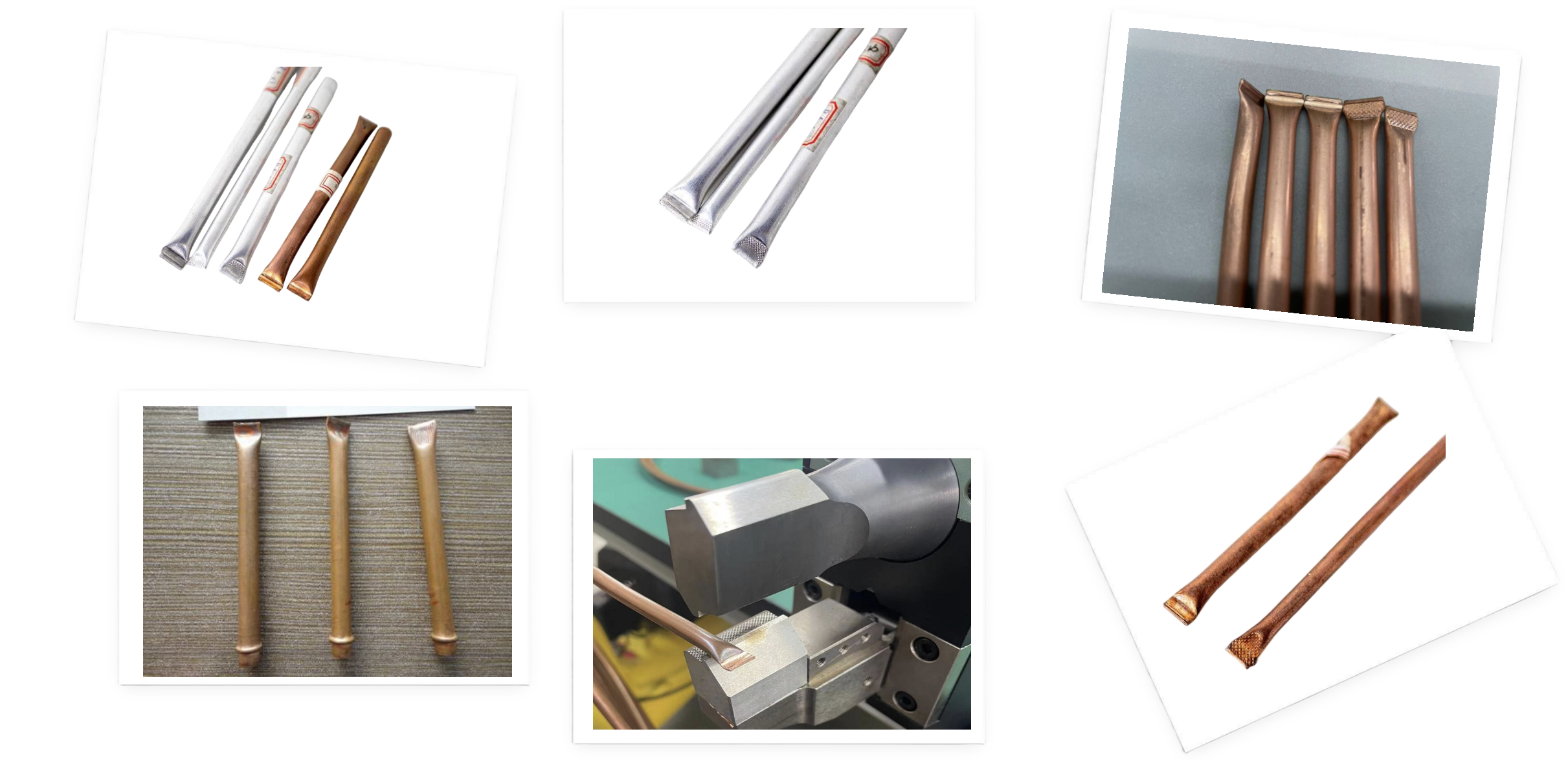

One-Step Seal + CutA single cycle simultaneously seals and cuts the charged tube, guaranteeing uniform sealing strength and cut length — no secondary operation. |
Hermetic, Leak-ProofCold solid-state welding produces a dense, airtight metal crimp that withstands refrigerant pressure with zero porosity or flux residue. |
The self-developed generator continuously tunes to the horn resonance, keeping output power stable as tooling wears or ambient conditions change. |
Parameter Storage & RecallStore recipes by tube size on the touchscreen and recall them with one tap. Time, amplitude, energy and count are all under digital control. |
Imported Tooling Steel HornsSonotrodes and clamping dies are machined from imported high-wear-resistant tool steel for high precision and long service life. |
Safe & Flame-FreeNo natural gas, no open flame, no filler rod. Eliminates fire risk, fumes and greenhouse-gas emissions common with brazing stations. |
