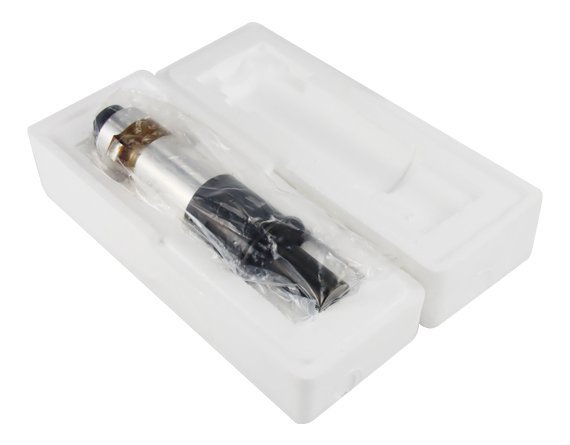

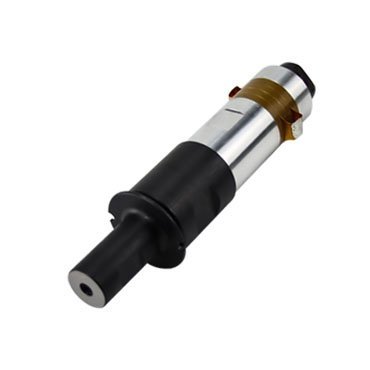

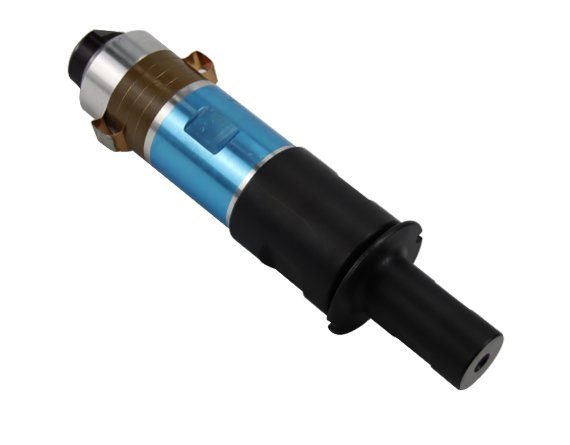

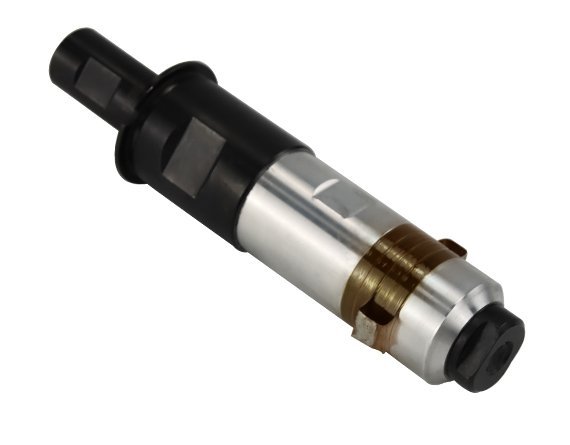

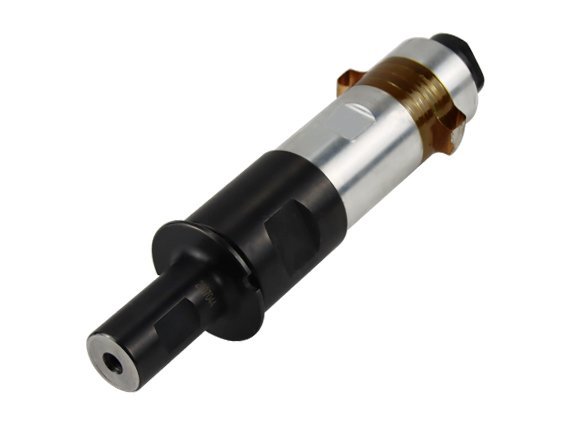

20 kHz Ultrasonic Piezoelectric Transducer

No.MC-CG-T20

Model: MC-CG-T20
Capacitance: <17000 pF.
High performance, high reliability,
and minimal power loss
— built for ultrasonic welding equipment.

20 kHz Ultrasonic Piezoelectric Transducer

✓ Frequency: 20 kHz ±0.5 kHz

✓ Maximum power: 1500 W / 1800 W

✓ Capacitance: <17000 pF

✓ Working temperature: -10 to 60 °C

✓ Cooling type: Air cooling

GET A QUOTE

Download

View all downloads

Description
Technical Data

The ultrasonic transducer is composed of a shell, a matching layer, a piezoelectric ceramic disc, a backing, a lead-out cable, and a Cymbal array receiver. The ceramic disc is made of PZT-5 piezoelectric material, polarized in the thickness direction, while the Cymbal array receiver consists of 8 to 16 Cymbal elements, two metal rings, and rubber gaskets.

An ultrasonic transducer can also be described as an ultrasonic emitter: through the piezoelectric effect, it converts electrical energy into mechanical energy, and its high-frequency vibration radiates ultrasonic waves.

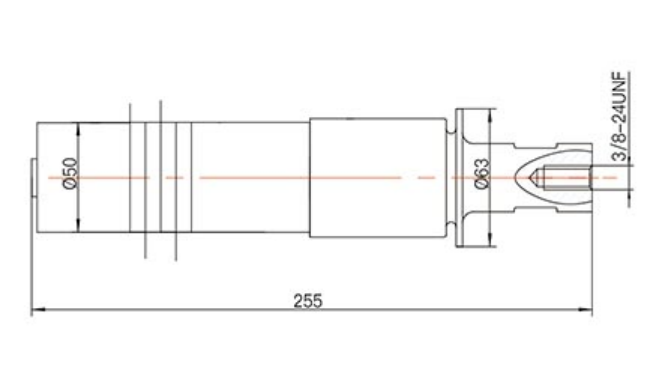

When selecting an ultrasonic welding transducer, the most critical considerations are the matching of input and output terminals, followed by mechanical installation and mounting dimensions. If you need ultrasonic transducers, please provide accurate specifications so that we can supply products perfectly matched to your machines for optimal performance.

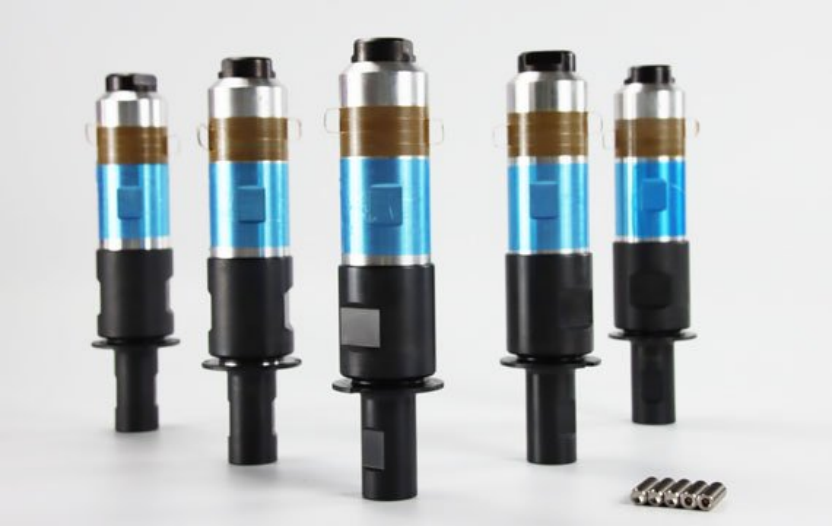

MCSONIC offers 15 kHz, 20 kHz, 35 kHz, and 40 kHz transducers in various sizes, and fully customized piezoelectric transducers are also available.

Advantages of Ultrasonic Transducer 20KHz

High-Energy-Conversion Ultrasonic Transducer

This standard 20 kHz transducer combines good heat dissipation with high energy conversion efficiency, delivering stable performance across a wide range of applications. Built to withstand demanding working conditions, it offers a long service life.

Model	Power (W)	Frequency (kHz)	Capacitance (pF) — Yellow	Capacitance (pF) — Gray	Capacitance (pF) — Black	Resistance (Ω)
MC-CG-T20-4CZ-BJ	1500	19.70–20.00	11000–12000	13000–14000	14500–16000	<20
