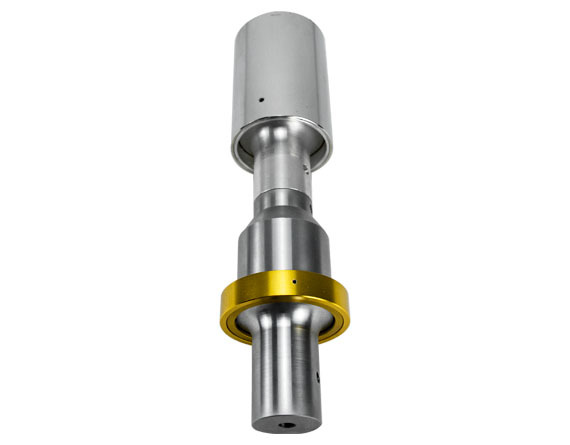

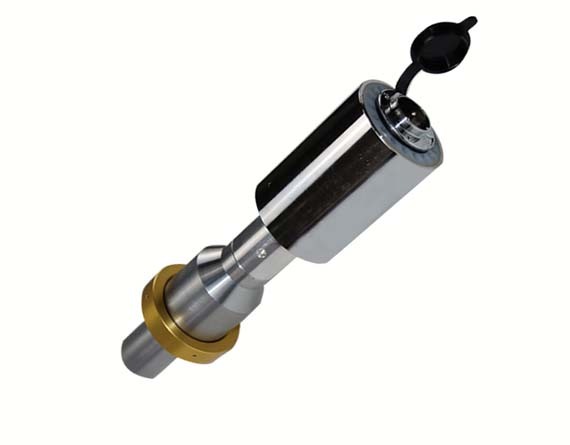

20 kHz Ultrasonic Transducer
✓ Low resonant impedance
✓ High electro-acoustic conversion efficiency
✓ Low heat generation with a wide operating temperature range
✓ Premium materials for strong, stable output power
The MC-JQ-T20 ultrasonic transducer combines a nickel-plated aluminum converter and booster with a steel housing, suited for ultrasonic welding, cleaning, and cutting machines. As an energy conversion device, it converts input electrical power into high-frequency mechanical vibration and delivers it to the sonotrode — while consuming less than 10% of the power itself.

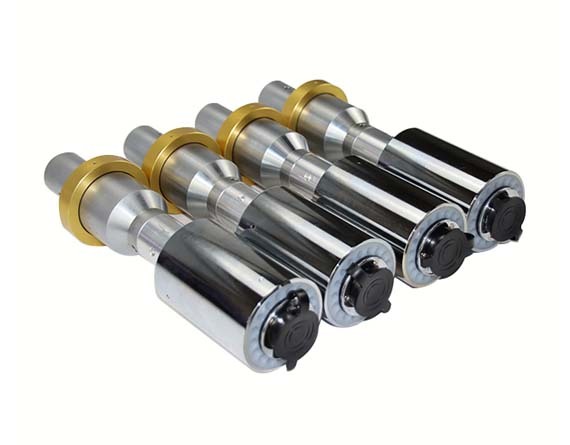

MCSONIC offers transducers in various sizes to suit different welding and cutting applications: 1200–4200 W standard ultrasonic welding transducers, dual-vibrator transducers, and fully customized options
|
Parameter |
Specification |
|
Frequency |
20 kHz ±0.5 kHz |
|
Ratio |
1:1, 1:1.5, 1:2 |
|

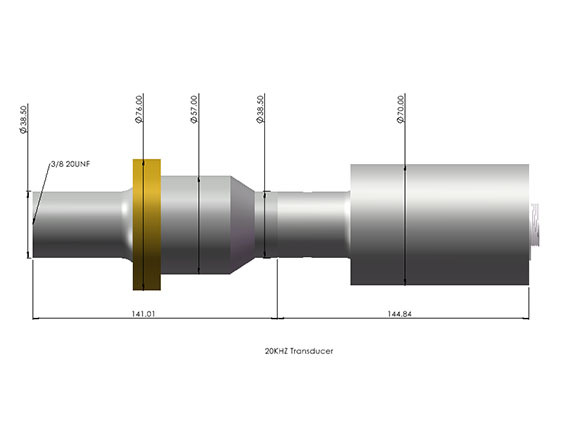

Joint bolt |
3/8"-20 UNF, 1/2"-20 UNF |
|
Material |
Aluminum, steel, titanium |
|
Parameter |
Specification |
|
Model |
MC-JQ-T2020 |
|
Frequency |
20 kHz ±0.5 kHz |
|
Maximum output power |
1500/2000/3000 W |
|
Capacitance |
10000–12000 pF |
|
Connector |
Aviation plug |
|
Ceramic discs |
4 pcs |
|
Application |
Ultrasonic plastic welding, food cutting |
