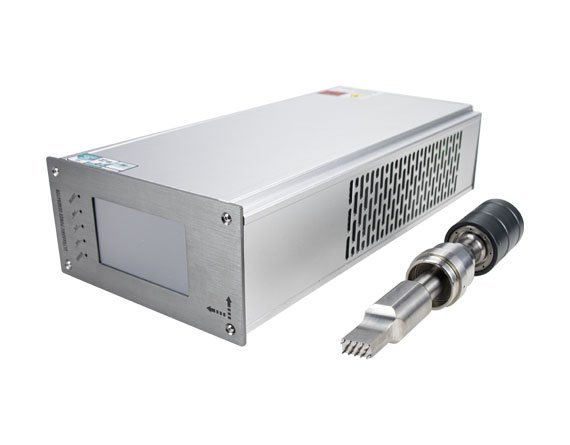

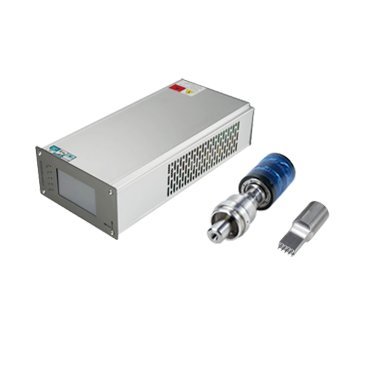

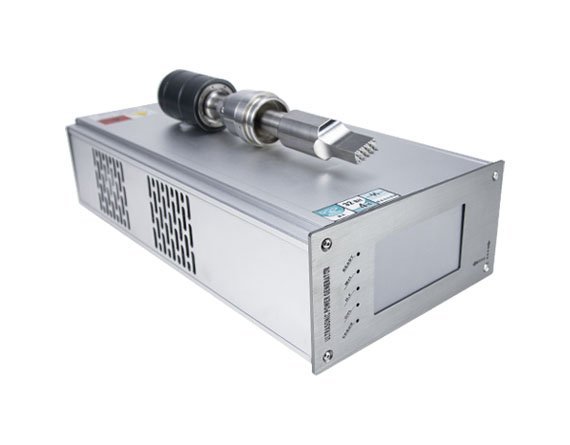

This 35 kHz ultrasonic welding system combines the MC-QD-GPLC ultrasonic generator, MC-CG-T ultrasonic transducer, and a titanium sonotrode. The PLC-controlled generator features an intuitive touch screen and works seamlessly with the transducer and sonotrode for easy, efficient operation.
 |
 |
| PLC Digital Ultrasonic Generator | High-Energy-Conversion Ultrasonic Transducer |

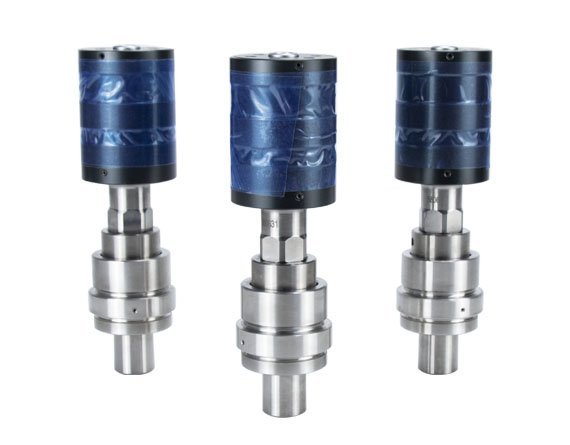

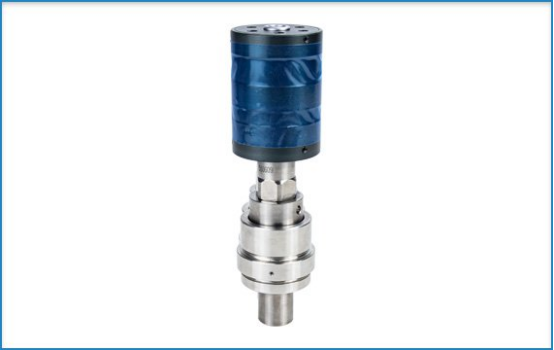

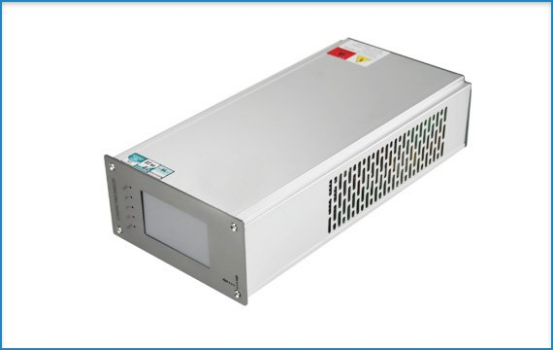

| This PLC-type auto-tuning digital generator features a clean, compact design that is easy to relocate. A redesigned circuit topology and advanced power devices deliver stable, efficient performance. | A high-quality transducer featuring low heat generation, excellent thermal stability, low resonant impedance, and a long service life. |
| Parameter | Specification |
|---|---|
| Model | MC‑QD‑PLC‑S3515 |
| Generator | |
| Frequency | 35 kHz |
| Power | 1200 W |
| Welding modes | Time, energy, grounding |
| Dimension | 390 × 195 × 100 mm |
| Weight | 6 kg |
| Transducer | |
| Frequency | 35 kHz |
| Joint bolt | M8 |
| Capacitance | 8400–9300 pF |
| Sonotrode | |
| Frequency | 35 kHz |
| Material | Titanium |
