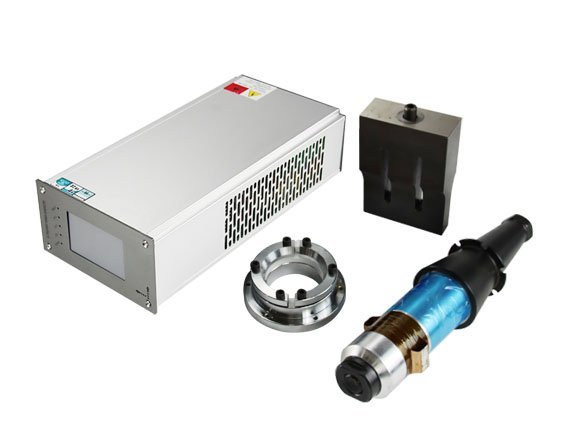

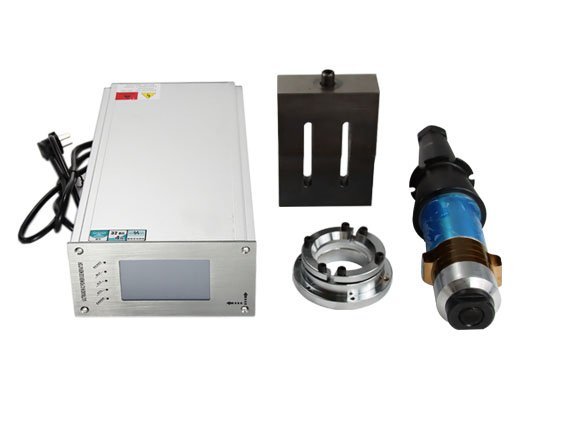

This ultrasonic welding system combines a touch-screen digital generator, a 15 kHz ultrasonic transducer, and a welding sonotrode. Built for reliable quality and stable welding performance, it has been widely adopted by manufacturers across industries worldwide.
 |
 |

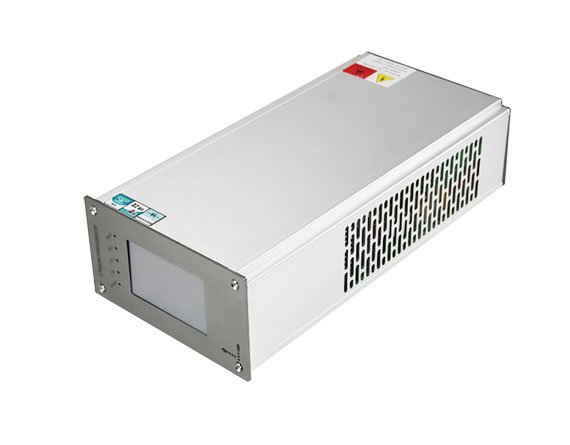

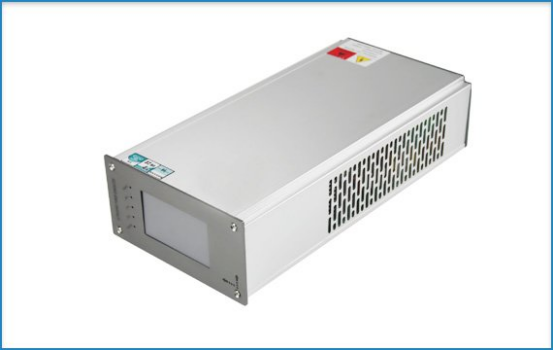

| PLC Ultrasonic Generator | High-Energy-Conversion Ultrasonic Transducer |
| A touch screen simplifies parameter setting and daily operation. Engineered for smart manufacturing, this generator is aligned with the Industry 4.0 concept. | Manufactured through strict production and testing processes, the 15 kHz transducer delivers strong, stable ultrasonic output with an extended service life. |
| Parameter | Specification |
|---|---|
| Model | MC‑QD‑PLC‑S1528 |

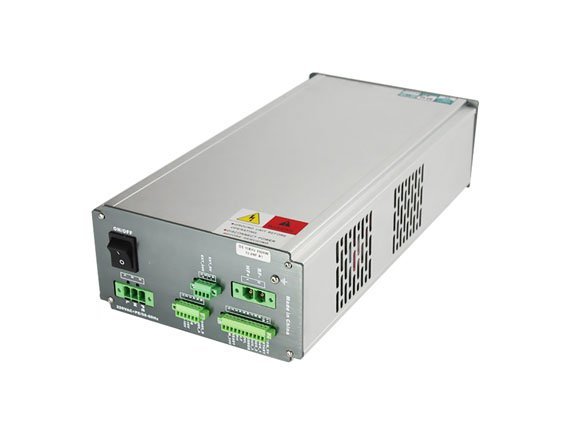

| Generator | |
| Frequency | 15 kHz |
| Power | 2600 W |
| Welding modes | Time, energy, grounding |
| Dimension | 390 × 195 × 100 mm |
| Voltage | 220 V ±10% |
| Weight | 6 kg |

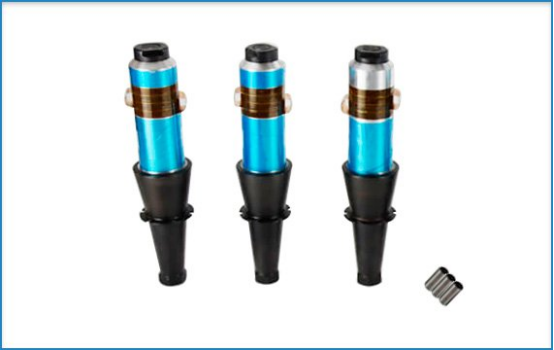

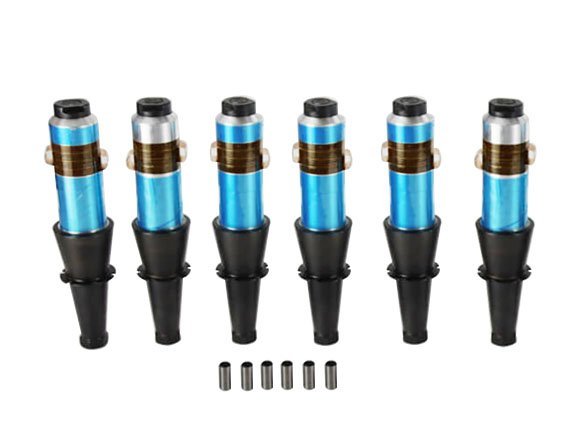

| Transducer | |
| Frequency | 15 kHz |
| Joint bolt | M16 |
| Capacitance | ≤14 nF (free capacitance) |
| Operating humidity | Relative humidity ≤85% (non‑condensing) |
| Material | Aluminum alloy (converter); stainless steel (booster) |
| Net weight | 6 kg |
| Sonotrode | |
| Frequency | 15 kHz |
| Material | Steel alloy |
