Ultrasonic Food Cutting System Economical Type

How the Ultrasonic Food Cutting System Works

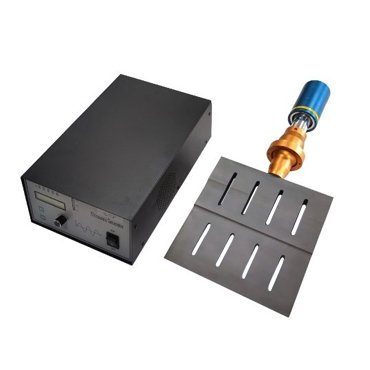

The system consists of four core components: a generator, a converter, a booster, and a blade.

1. Generator— converts 50/60 Hz AC line power into high-frequency electrical energy;
2. Converter— uses its electromechanical properties to convert that electrical energy into high-frequency mechanical vibration;
3. Booster— transfers the vibration forward, raising or lowering the amplitude depending on its design;
4. Blade— receives the amplified vibration and performs the cutting at high frequency.

The system supports continuous cutting and can be integrated into either manual or fully automated food cutting machines. Contact us for more details — we're happy to help you find the right configuration.

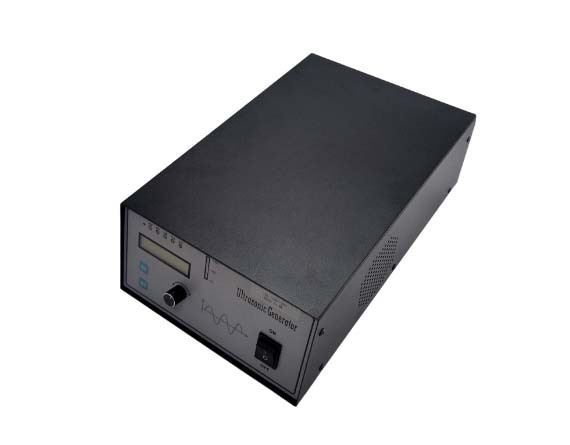

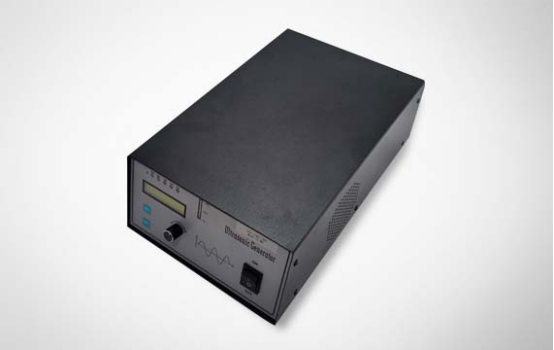

Ultrasonic Generator — Digital Ultrasonic Power Supply

The digital ultrasonic generator converts AC mains power into a high-frequency, high-voltage electrical signal that drives the cutting system.

Key specifications:

• Frequency options:20, 30, 35, and 40 kHz;
• Adjustable amplitude:10% – 100%, with 1% precision for fine-tuned control.

With its intuitive interface, you can easily manage the entire food cutting process by simply setting the relevant parameters on the generator.

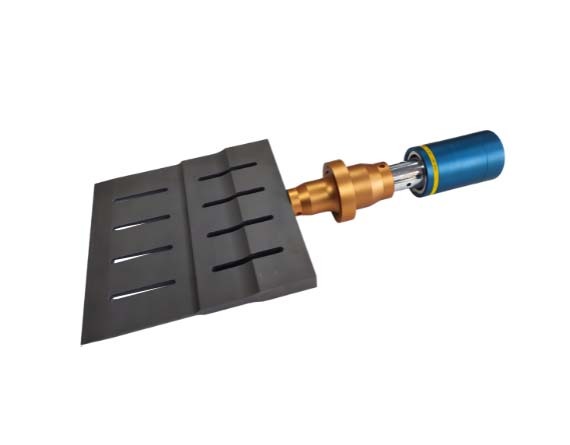

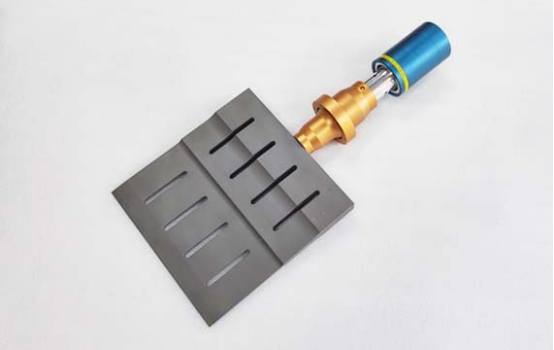

Titanium Alloy Ultrasonic Cutting Blade
Engineered through FEA analysis and made from premium titanium alloy, our ultrasonic cutting blades deliver efficient, reliable performance. The blade produces a virtually frictionless cutting surface, minimizing sticking and deformation for clean, precise cuts every time.

APPLICATION
