| Parameter | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 | Model 6 | Model 7 | Model 8 |
|---|---|---|---|---|---|---|---|---|
| Frequency | 15 kHz | 15 kHz | 15 kHz | 20 kHz | 20 kHz | 30 kHz | 35 kHz | 40 kHz |
| Power | 4200 W | 3200 W | 2600 W | 3000 W | 2500 W | 1200 W | 1200 W | 800 W |
| Welding Stroke | 100 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Max. Weld Force | 3020 N | 3020 N | 3020 N | 1870 N | 1870 N | 1170 N | 1170 N | 1170 N |
| Weight | 260 kg | 150 kg | 85 kg | 150 kg | 85 kg | TBD | TBD | TBD |
| Dimensions (L×W×H) | 750×900×1900 mm | 650×750×1880 mm | 390×630×1050 mm | 650×750×1880 mm | 390×630×1050 mm | TBD | TBD | TBD |
| Motion System | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Voltage | 200–240 VAC (stable output) | 200–240 VAC (stable output) | 200–240 VAC (stable output) | 200–240 VAC (stable output) | 200–240 VAC (stable output) | 200–240 VAC (stable output) | 200–240 VAC (stable output) | 200–240 VAC (stable output) |
| Accuracy | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm |
| Welding Mode | Time / Energy / Time + Energy / Ground Detect | Time / Energy / Time + Energy / Ground Detect | Time / Energy / Time + Energy / Ground Detect | Time / Energy / Time + Energy / Ground Detect | Time / Energy / Time + Energy / Ground Detect | Time / Energy / Time + Energy / Ground Detect | Time / Energy / Time + Energy / Ground Detect | Time / Energy / Time + Energy / Ground Detect |
| Trigger Mode | Delay Time / External | Delay Time / External | Delay Time / External | Delay Time / External | Delay Time / External | Delay Time / External | Delay Time / External | Delay Time / External |
| Intelligent Management | Amplitude / Quality / Data / Safety Management | Amplitude / Quality / Data / Safety Management | Amplitude / Quality / Data / Safety Management | Amplitude / Quality / Data / Safety Management | Amplitude / Quality / Data / Safety Management | Amplitude / Quality / Data / Safety Management | Amplitude / Quality / Data / Safety Management | Amplitude / Quality / Data / Safety Management |

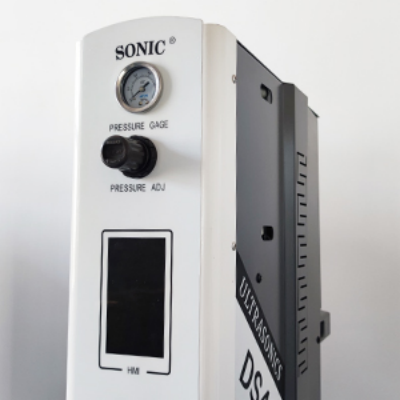

| Operating Device | 4.3‑inch touch screen panel | 4.3‑inch touch screen panel | 4.3‑inch touch screen panel | 4.3‑inch touch screen panel | 4.3‑inch touch screen panel | 4.3‑inch touch screen panel | 4.3‑inch touch screen panel | 4.3‑inch touch screen panel |
| Features | Welding record / Data statistics | Welding record / Data statistics | Welding record / Data statistics | Welding record / Data statistics | Welding record / Data statistics | Welding record / Data statistics | Welding record / Data statistics | Welding record / Data statistics |
| Working Rack | Square column | Square column | Square column | Square column | Square column | Square column | Square column | Square column |
| Language | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English |
| Warranty | 1 year | 1 year | 1 year | 1 year | 1 year | 1 year | 1 year | 1 year |
| Optional Auxiliary Equipment | Tooling clamps, X‑Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, and more | Tooling clamps, X‑Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, and more | Tooling clamps, X‑Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, and more | Tooling clamps, X‑Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, and more | Tooling clamps, X‑Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, and more | Tooling clamps, X‑Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, and more | Tooling clamps, X‑Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, and more | Tooling clamps, X‑Y shifters, protective light curtains, film rollers, acoustic enclosure lift gates, and more |
